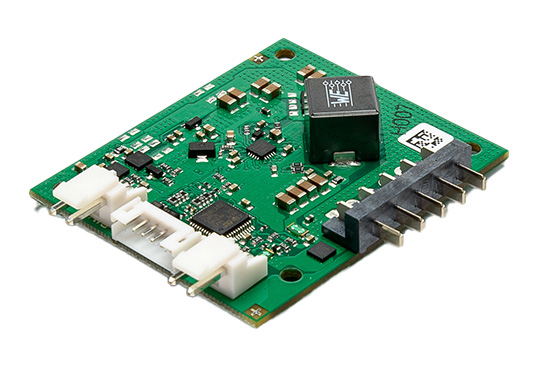

RRC-PMM240

モバイルアプリケーション用充電管理モジュール

 新規設計にはお勧めしません。

新しいRRC-PMM20パワーマネージメントモジュールをご使用ください。

詳しい情報をお求めですか？

Downloads RRC-PMM240

Power supply Input
Input voltage range	Min. Battery charge voltage +1.00V Max. 24.00VDC
Total input power	192.00W max.
Input current	8.00A max.
Input fuse	12.00A
Portection	Reverse polarity, short current

Application Output
Output voltage range	Equal to DC input voltage if external DC power supply is present. Equal to battery voltage if no external DC power supply is present.
Total output power	240.00W max.
Output current	10.00A max.
Output fuse	12.00A

Power Management
Automatic power source selection with seamless transition between external DC power supply and battery

Battery Input / Output
Battery charge voltage	Up to 19.20V (± 0.5%)
Battery charge current	Up to 6.20A (± 3%)
Battery charge power	Up to 82.00W
Battery discharge current	10.00A max.
Protection	Battery short circuit, over temperature, over voltage, over current & reverse polarity
Standby current	Typical 1.00mA

Environmental Condition & User Interface
Operating Temperature	-20° to +60°C
Transport & Storage Temperature	-20° to +60°C
Relative Humidity	5% - 95% non-condensing
Ambient pressure	500-1070hPa

User Interface
UI via GPIO / available info	Charging: yes/no External DC power supply: yes/no Battery/hardware error
SMBus commands to set	Charge current limit, input current limit
Battery information available	via standard SMBus

Battery architecture	DC input voltage	Power supply wattage @ 4.00A max input current	Power supply wattage @ 8.00A max input current
1SxP	6.00VDC	≥30.00W	≥60.00W
2SxP	12.00VDC	≥48.00W	≥96.00W
3SxP	15.00VDC	≥64.00W	≥128.00W
4SxP	19.00VDC	≥80.00W	≥160.00W

Mechanical Details
Boards dimensions (LxWxH)	60.00mm x 50.00mm x 11.00mm, without cables and connectors
Weight	22g
Connectors	DC input & DC output (2 pin), User interface (6 pin), Battery connector (5 pin smart battery connector)
