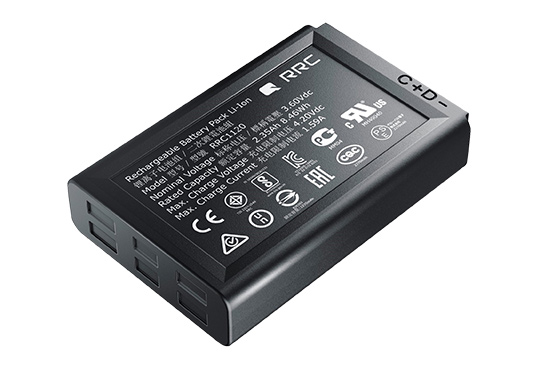

RRC1120
標準バッテリーパックRRC1120 (1S1P)
(3.60V/2.35Ah/8.46Wh)
- 世界中で認可を受け、安全規格を遵守
- 開発コストがかからず、市場に出るまでの時間を短縮
- 数多くの機能とI2C通信を備えたスマートバッテリー
- 最高のエネルギー密度を持つ最新のリチウム電池
- 高い放電電流
- JEITA充電プロファイル最適化
- 数多くの冗長性安全機能
- 最大8.00KVまで静電気放電保護を増加
- 平均寿命：800サイクル後、最初の容量の最大80%まで。
以下の製品情報およびダウンロードはそれぞれRRC1120の最新バージョンなのでご注意ください。以前のバージョンはこちらにあります。
詳しい情報をお求めですか？
製品データシート RRC1120
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
| Compliance information | IEC62133 / CE / UL2054 / CAN ICES-003(B) / NMB-003(B) / FCC / UKCA / PSE / KC / BSMI / Gost-R / CMIM / CCC / RCM / BIS / TISI / UN38.3 / RoHS / REACH |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 60°C max. |
Communication bus | I²C |
| Electrical Parameters | |
|---|---|
Nominal voltage | 3.60V |
Nominal capacity | 2.35Ah |
Initial impedance | <100mΩ @ 1kHz at 25°C |
Max. charge current | 1.59A |
Max. charge voltage | 4.20V |
Cont. discharge current | 2.30A |
Battery cell configuration | 1S1P |
Battery chemistry | Lithium Ion (Li-Ion) |
| Battery Dimensions | |
|---|---|
Length | 52.50mm +0.20/-0.20 |
Width | 34.95mm +0.15/-0.15 |
Thickness | 11.15mm +0.10/-0.10 |
Weight | 42g |
Contacts | SCL, +, SDA (ID), - |
| Ingress protection | IP40 |
| Safety Features | |
|---|---|
CUV (Cell Under Voltage) | Protection against deep discharge |
COV (Cell Over Voltage) | Protection against over charge |
OTC (Over Temperature in Charge) | Protection against overheating while charging |
OTD (Over Temperature in Discharge) | Protection against overheating during discharging |
| OCC (Over Current in Charge) | Protection against overcurrent while charging |
| OCD (Over Current in Discharge) | Protection against overcurrent during discharging |
| OLD (Overload in Discharge) | Protection against overload during discharging |
| SCC (Short Circuit in Charge) | Protection against short circuits while charging |
| SCD (Short Circuit in Discharge) | Protection against short circuits during discharging |
| CTO (Charge Timeout) | Protection against prolonged charging |
FLATPAQ RRC1120は世界中で認可を受けています
