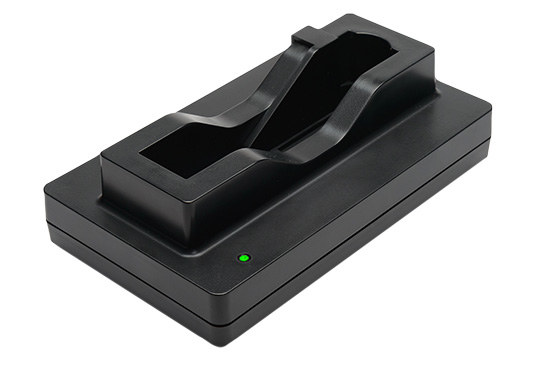

RRC-SMB-UBC-M
SMBus対応バッテリー用医療用標準バッテリー充電器
- シングルベイの汎用スピード充電器
- RRC20xxシリーズ形状の標準バッテリーパック、または同様の形状のSMBus対応バッテリー向け
- RRCバッテリー用に最適化された充電プロセス：
- サイクル寿命の向上
- 充電のスピードアップ
- プラグ＆プレイで簡単な操作が可能
- バッテリータイプの自動識別と充電パラメーターの適応
- 世界中で使用できる医療用外部AC/DC電源
- ご要望に応じて各国特有のAC入力ケーブルが利用可能
- オプションで自動車用DC/DCアダプターが利用可能
詳しい情報をお求めですか？
製品データシート RRC-SMB-UBC-M
Specification RRC-SMB-UBC-M
| Input | |
|---|---|
| Voltage range | 19.00 - 26.00VDC |
| Current | 3.40A max. |
| Power | 65.00W |
| Protection | Over current (fuse protected), under voltage |
| Output | |
|---|---|
| Voltage range | 0 - 17.40VDC |
| Current | 0 – 4.80A |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±10% max. @1.00A, ±3% max. @4.00A |
| Protection | Short circuit, Over temperature shutdown, Input / Output over current |
| Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: 0°C to 40°C |
| Pressure & Altitude | Operating: 1060hPa to 540hPa (-382m to 5000m) |
| Humidity | Operating: 20% to 80% r.H. Non-operating: 10% to 90% r.H. |
| General | |
|---|---|
| Efficiency | ~95% to 100% load |
| Battery type | For standard battery packs in form factor RRC20xx or similar SMBus compliant batteries |
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 WEEE 2012/19/EU Chinese RoHS |
| Indicator | Multi-color LED (green, red, orange) |
| Housing dimensions (LxWxH) | 151.00 x 90.00 x 43.00mm |
| Weight | 198g (without power supply) |
One time Red/Orange/Green | Selftest: Charger is ready for use. |
Red/Green blinking | Battery recognition and initialization. |
Orange blinking | The battery is currently being calibrated. |
Orange light | The inserted battery is of the correct type and is currently being charged. |
Green light | The battery is charged and can be removed for use. |
Red blinking | The battery is too hot or too cold to be charged without damage. If the battery is too cold it will be charged as soon as it has warmed up sufficiently. If the battery is too hot it should be removed to cool down. |
Red light | The battery is damaged or it is a conventional battery which cannot be recharged. |
In combination with included external AC/DC power supply (PS65M) | ||
Regulatory approvals | Europe | EN62368-1 (CE) |
| International | IEC62368-1 (CB) | |
Electromagnetic Emissions | Europe | EN55011, EN55032, level B |
| USA | FCC15 class B | |
Electromagnetic Immunity | ESD immunity | EN/IEC61000-4-2 |
| Electromagnetic field immunity | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted Immunity | EN/IEC61000-4-6 | |
| Magnetic Fields | EN/IEC61000-4-8 | |
| Voltage dips, short instrumentations & voltage variations | EN/IEC61000-4-11 | |
| Immunity characteristics | EN55024 |
Specification external AC/DC power supply (PS65M)
| Input | |
|---|---|
Voltage range | 100.00 - 240.00VAC, 50 to 60 Hz |
Current | 1.60A max. |
Stand by power | < 0.21W @ no load |
| Output | |
|---|---|
| Voltage range | 19.00VDC ± 5% |
| Power | 65.17W max. |
| Current range | 3.43A |
| Protection | Over voltage, over current, short circuit |
| Environmental | |
|---|---|
| Temperature | Operating: 0°C to 40°C |
| General | |
|---|---|
| Efficiency | California's Energy Efficiency Level VI |
Ripple & Noise | 0.19V (p-p) |
Standard output connector | DC barrel jack, 5.5 x 2.5 x 11mm |
Housing dimensions (LxWxH) | 119.00 x 60.00 x 36.00mm, without cables and connectors |
Weight | 310g, without input cable |
| Cable length | 1500mm ±30mm |
| Safety | ITE | CE, PSE |
| Medical | cULus, T-mark. EN/IEC60601-1 | |
| EMI | Europe | CE |
| USA & Canada | FCC15 class B | |
| United Kingdom | UKCA | |
| Morocco | CMIM |
標準バッテリー充電器RRC-SMB-UBC-Mは世界中で認可を受けています
