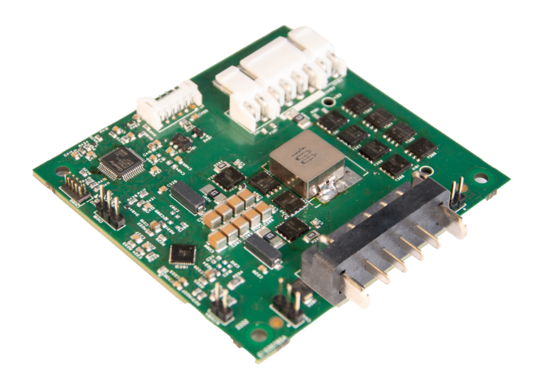

RRC-PMM35
モバイルアプリケーション用充電管理モジュール
PMM35はバッテリーの内部充電を可能にし、主電源とバッテリー電源のシームレスな切り替えを容易にします。
- 設計が容易で、スロット設計への組み込みが容易
- RRC35XX標準バッテリーパック用のプラグ＆プレイ可能な組み込み充電ソリューション
- 電源管理機能
- スマートバッテリー仕様に完全準拠
- 産業用および医療用アプリケーションとして世界中で認証済み
- 設定可能
複数のPMMを1つの装置内で並列に使用し、より多くのバッテリーを組み合わせることができます。
詳しい情報をお求めですか？
Downloads RRC-PMM35
製品データシート RRC-PMM35
Specification
| Power supply Input | |
|---|---|
| Input voltage range | 19.00V - 24.00VDC |
| Total input power | 480.00W max. |
| Input current | 20.00A max. |
| Input fuse | TBD |
| Portection | Reverse polarity, short current |
| Application Output | |
|---|---|
| Total output power | 540.00W max. in battery mode 480.00W max. in power supply mode |
| Output current | 20.00A max. |
| Output fuse | TBD |
| Power Management | |
|---|---|
| Automatic power source selection with seamless transition between external DC power supply and battery | |
| Battery Input / Output | |
|---|---|
| Battery charge voltage | Up to 29.40V |
| Battery charge current | Up to 6.00A |
| Battery charge power | Up to 180.00W |
| Battery discharge current | 20.00A max. |
| Protection | Battery short circuit, over temperature, over voltage, over current & reverse polarity |
| Standby current | TBD |
| Environmental Condition & User Interface | |
|---|---|
| Operating Temperature | -20° to +60°C |
| Transport & Storage Temperature | -20° to +60°C |
| Relative Humidity | 5% - 95% non-condensing |
| Altitude | 5000m for operation and storage |
| User Interface | |
|---|---|
| UI via GPIO / available info | Charging: yes/no |
| SMBus commands to set | Charge current limit, input current limit |
| Battery information available | via standard SMBus |
| Reglatory Approvals | |
|---|---|
| International | TBD |
| Europe | CE, UKCA (EMC) |
| USA | FCC (EMC) |
| Environmental | RoHS |
| Mechanical Details | |
|---|---|
| Boards dimensions (LxWxH) | ~80mm x 75mm, without cables and connectors |
| Weight | TBD |
| Battery Connector | 1x battery pack accessible via 90° mating connector for RRC35xx batteries |
| Input/Output Connector | 1x 90° / 8pin JST style header on PCBA |
| Communication Interface | 180° / 5pin JST style header on PCBA with 2xSMBus lines, GND and 2xGPIO |
