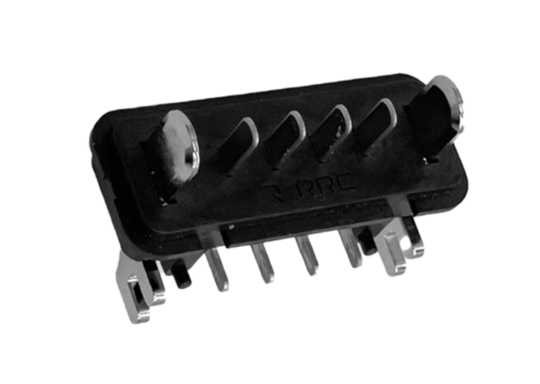

RRC-MC35-90-30
バッテリー用コネクター
- RRC標準バッテリーパックRRC35xxに対応
- バッテリーへの最大充電・放電電流が30.00A
- スプリング接点付き6ピン・オスコネクター
- 4 Signal Pins: 5mmのピッチ
- 2 Power Pins: 7mmのピッチ
- RoHS/REACH対応
詳しい情報をお求めですか？
Downloads RRC-MC35-90-30
製品データシート RRC-MC35-90-30
Specifications
| Ratings | |
|---|---|
| Current | 30.00A max. / power pin 1.00A max / signal pin |
| Voltage | 60.00V DC (power) 60.00V DC (signal) |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | 120 µin Nickel overall, 50 µin Nickel on contact area |
| Operating Temperature | -40°C to +85°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 50mOhm max. |
| Insulation Resistance | 1000MOhm min. at 500VDC/1min |
| Dielectric withstanding voltage | 500.00V/1min |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 1500g min. / power pin 1000g min. / signal pin |
| Dimensions (LxWxH) | 35.00mm x 12.00mm x 20.8mm |
| Weight | 8g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC35-90-30 | |
|---|---|
| RRC part number | 212418 |
| PCB mounting | 90° |
| Packaging | |
|---|---|
| 32 connectors per tube | |
| 320 connectors per carton | |
